Industrial Level Mitsubishi PLC & HMI Programming Masterclass

Ladder | FBD | SFC | ST | HMI | Communication

208 Recorded Classes | 81+ Hours Training | 6 Complete Sections | 4 Years Validity | Fee Rs. 1600

---

Course Details
Programming Covered: Ladder, FBD, SFC and ST
Software Covered: GX Works3 and HMI Designing Software
Class Type: Recorded Class
Course Fee: Rs. 1600
Course Validity: 4 Years
Level: Basic to Industrial Level

---

Course Description

Ye course un students, electricians, technicians aur engineers ke liye design kiya gaya hai jo Mitsubishi PLC aur HMI Programming ko basic se industrial level tak practically seekhna chahte hain.

Is masterclass me aapko sirf theory nahi, balki real industrial practical knowledge milega. Is course me PLC panel wiring, input-output wiring, HMI designing, PLC communication, VFD communication, analog signal, encoder, pneumatic cylinder control, leak test machine programming aur advanced PLC programming languages jaise Ladder, FBD, SFC aur ST Programming cover ki gayi hain.

Is course me Mitsubishi PLC programming ke liye GX Works3 software aur HMI designing/programming ka complete practical workflow sikhaya gaya hai.

---

Course Divided Into 6 Sections

Section	Course Section Name	Classes	Total Duration
1	Ladder Logic Programming	77 Classes	31h 01m 52s
2	HMI Designing and Programming	54 Classes	20h 10m 28s
3	PLC Communication Protocols	24 Classes	7h 31m 51s
4	FBD Programming	27 Classes	13h 25m 45s
5	SFC Sequential Control Programming	13 Classes	5h 28m 27s
6	Structured Text ST Programming	13 Classes	4h 11m 06s
	Total	208 Classes	81h 49m 29s

---

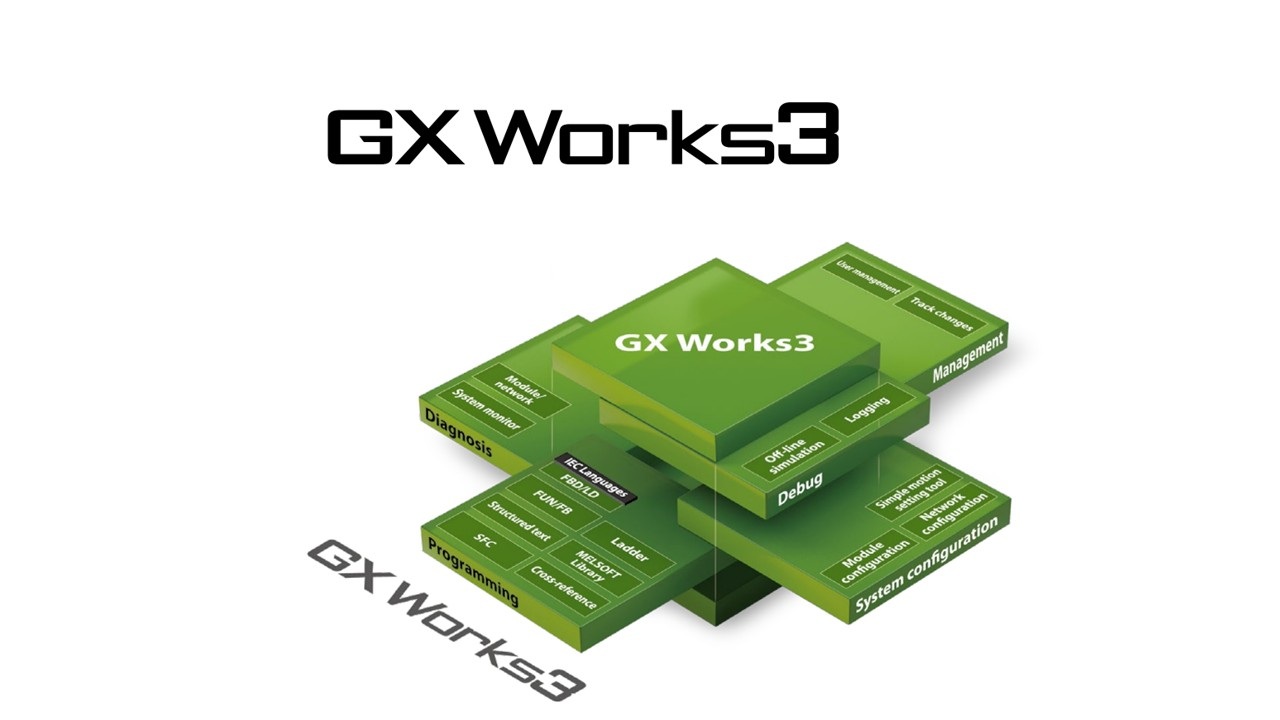

Section 1: Ladder Logic Programming

Is section me aap Mitsubishi PLC programming ki complete basic se advanced training seekhenge.

Topics Covered:

PLC introduction, GX Works3 software setup, PLC panel wiring, input-output wiring, memory bit, logic gates, holding circuit, rising/falling edge, SET/RESET, timers, counters, data transfer, compare instruction, math instruction, high-speed counter, encoder, analog input-output, pneumatic cylinder programming aur leak test machine PLC program.

---

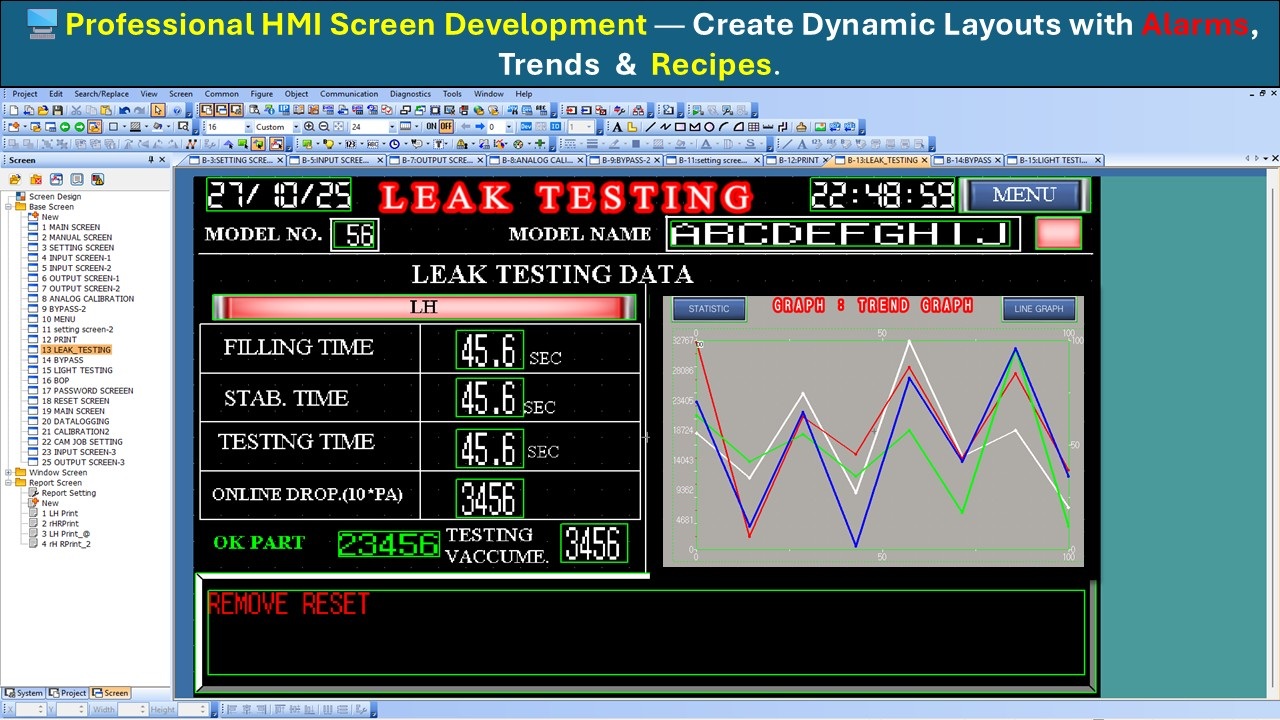

Section 2: HMI Designing and Programming

Is section me HMI designing ko basic se professional level tak practically sikhaya gaya hai.

Topics Covered:

HMI project creation, screen designing, switch, lamp, numeric entry, text input, password security, popup screen, alarm setting, trigger action, time action, graph, meter, script, data logging aur recipe setting.

---

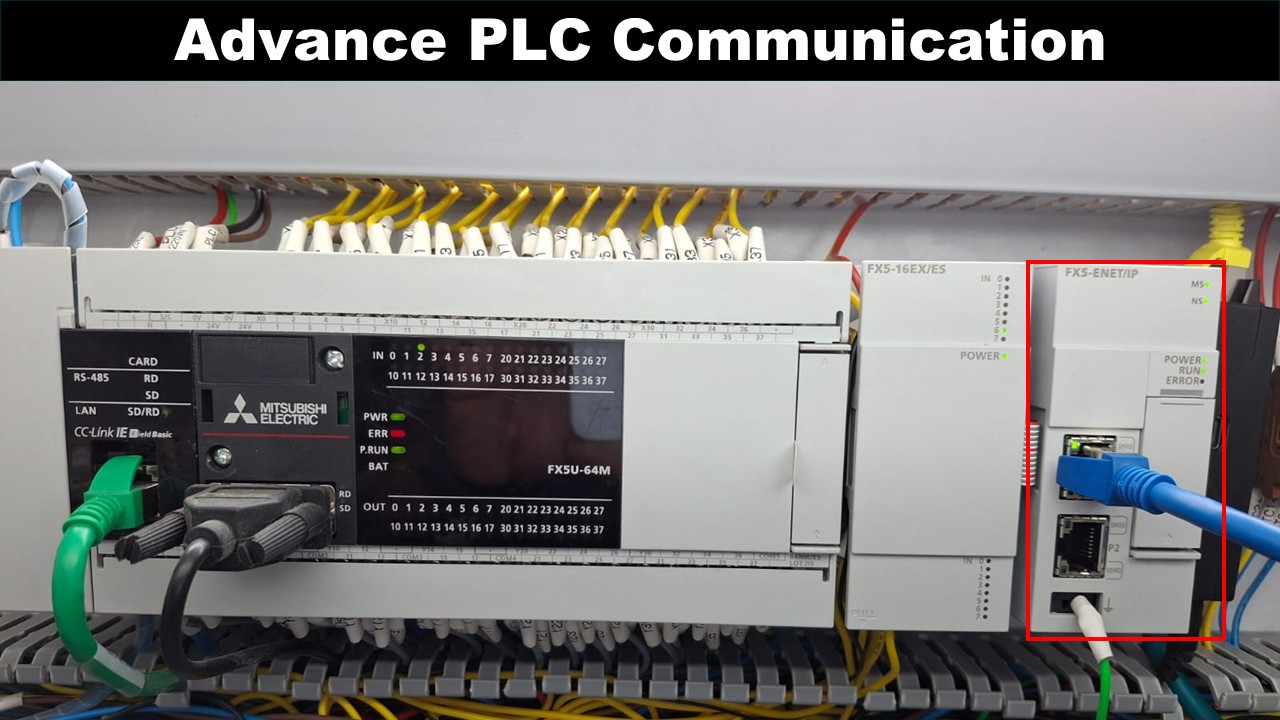

Section 3: PLC Communication Protocols

Is section me industrial communication ko real devices ke saath practically explain kiya gaya hai.

Topics Covered:

Modbus communication, Delta VFD communication, Mitsubishi VFD communication, PID controller communication, load cell communication, earth-to-neutral meter communication, one HMI with multiple PLC communication, PLC-to-PLC communication, ENET/IP, robot communication aur CC-Link servo communication.

---

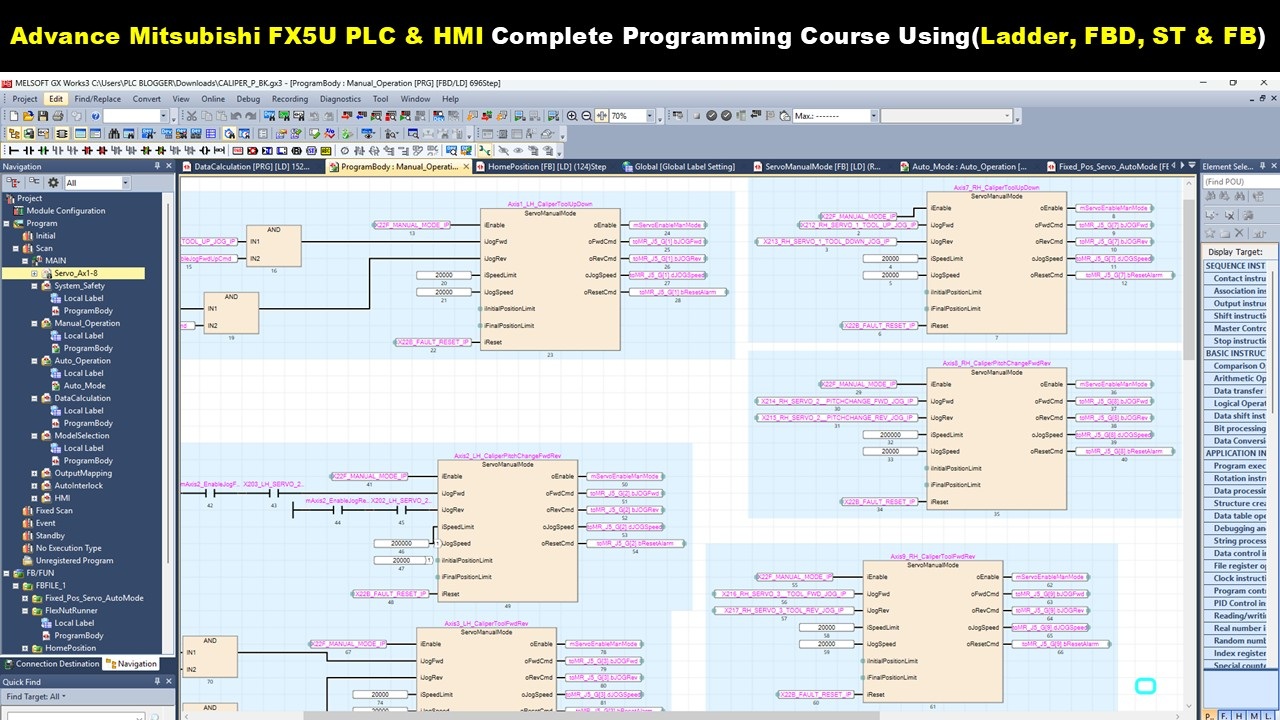

Section 4: FBD Programming

Is section me Function Block Diagram programming ko practical industrial examples ke saath sikhaya gaya hai.

Topics Covered:

Ladder vs FBD, FBD labels, data types, motor control, timers, counters, bottle counting conveyor, screwdriver machine logic, analog signal programming, custom function block, solenoid valve logic, ladder + FBD integration aur leak test machine project.

---

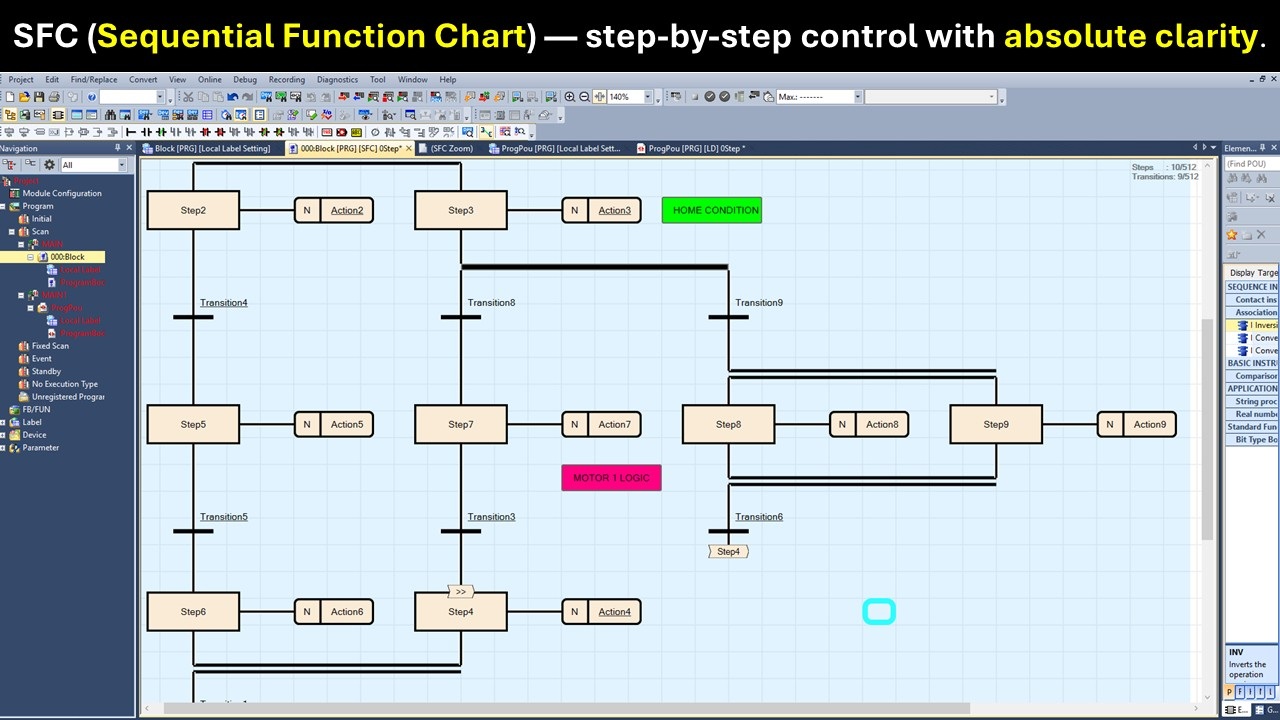

Section 5: SFC Sequential Control Programming

Is section me sequence-based machine programming ko step-by-step practical method se sikhaya gaya hai.

Topics Covered:

SFC structure, STL instruction, multistep programming, industrial sequence project, SFC + HMI integration, auto/manual mode, branching, step jump, pause/restart logic, multi-motor control aur final machine program using SFC + FBD.

---

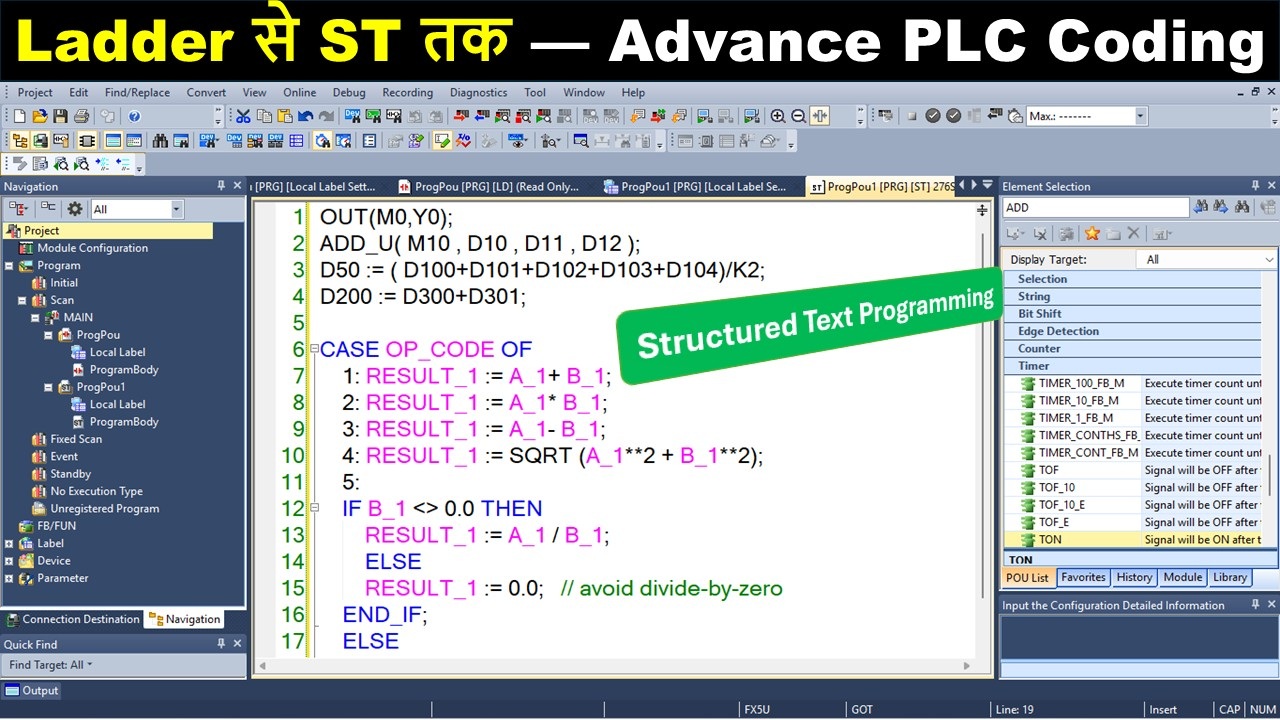

Section 6: Structured Text — ST Programming

Is section me PLC ki text-based programming language ko simple aur practical way me explain kiya gaya hai.

Topics Covered:

ST basic syntax, operators, math operators, formula-based programming, SQRT function, NO/NC logic, timers, IF-ELSE, FOR loop, CASE statement, WHILE loop aur array processing.

---

What You Will Learn in This Course

Is course ko complete karne ke baad aap ye skills seekhenge:

✅ Mitsubishi PLC programming from basic to industrial level
✅ GX Works3 software use and ladder programming
✅ PLC panel wiring, input-output wiring and final testing
✅ PLC-HMI connection, program transfer and backup
✅ HMI screen designing, password, alarm, graph and data logging
✅ Modbus, ENET/IP, CC-Link and PLC communication
✅ VFD, PID controller, load cell, meter, robot and servo communication
✅ FBD programming with real machine logic
✅ SFC sequence programming for industrial machines
✅ Structured Text programming with practical examples
✅ Analog signal, encoder and high-speed counter programming
✅ Pneumatic cylinder control and leak test machine project

---

Who Can Join This Course?

Ye course in learners ke liye best hai:

✅ Electricians
✅ Electrical Technicians
✅ Diploma Electrical Students
✅ B.Tech Electrical Students
✅ Maintenance Engineers
✅ Automation Learners
✅ Panel Wiring Technicians
✅ Beginners who want to learn PLC and HMI

---

Why This Course Is Important?

Aaj industry me sirf wiring knowledge enough nahi hai. Ab electricians aur technicians ko PLC, HMI, VFD, sensors, communication, analog signal aur machine automation ki practical knowledge bhi honi chahiye.

Ye course aapko electrician level se industrial automation level tak skill develop karne me help karega. Isme real industrial devices aur real project examples ke saath training di gayi hai, jisse aap PLC-HMI programming aur troubleshooting confidently kar paayenge.
